Umatshini wokuJika ozenzekelayo

Umatshini wokuJika ozenzekelayo

Umatshini wokuJika ozenzekelayo usetyenziswa ikakhulu ukujika ipleyiti yokufudumeza yesitoli se-ric kunye ne-lathing ye-fan cover. Iqondo eliphezulu lokuzenzekelayo, ukusebenza kakuhle kwemveliso, ukuya kuthi ga kwimizuzwana eyi-8 ukugqiba imveliso. Ngaphandle kwe-clamping engenanto, zonke ezinye iinkqubo zokucwangcisa zingagqitywa ngezixhobo zoomatshini. I-Hydraulic disc machining inciphisa umsebenzi womqhubi kwaye iphucula iimeko zokusebenza.

Umatshini wokuJika isixhobo soomatshini siphezulu-sokusebenza oluzenzekelayo okanye oluphakathi{1}}sisixhobo somatshini esizenzekelayo. Xa kuthelekiswa nezixhobo zomatshini eziqhelekileyo, uneempawu zokuguquguquka okuphezulu, ukuveliswa okuphezulu, ukuchaneka okuphezulu kokucubungula, ukucwangcisa okuzinzileyo nokuthembekileyo, njl.

Okwangoku, umda wokusetyenziswa kwezixhobo zoomatshini ubanzi kakhulu, kodwa umatshini wethu we-lathe ulungele ngokukodwa ukusetyenzwa kweediski zokufudumeza. Xa isetyenziselwa ukucubungula iiplati zokufudumeza, isebenze ngakumbi kwaye ivelise i-CNC lathes, ngokude nje kukho oomatshini kwishishini, izixhobo zokuThuthukisa ngokuzenzekelayo ziya kusetyenziswa.

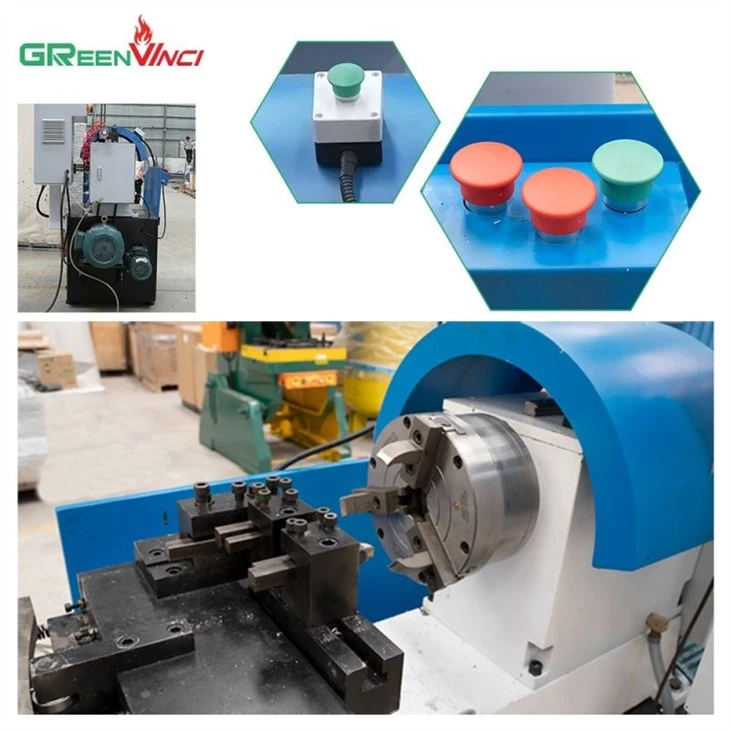

Oku kulandelayo kulwakhiwo lwalo matshini wokuJika ngokuSebenzayo

1. Ukutshintsha kwamandla aphambili

2. Iswitshi yokukhulula imihlathi -yesithathu

3. I-inshorensi yokhuseleko 4. Ukumisa ngexesha likaxakeka

5. Hlehlisa isigqubuthelo sokhuseleko 6. Qala

7. Chuck clamp

8. Gcwalisa i-68# itanki yeoli yehydraulic

9. Uhlengahlengiso lwePlaten Curvature
10. Ukulungiswa koBunzulu bobunzima
11. Inqwelo yokuthambisa

12. Ukuguqulwa kweebhuleki zokuguqulwa rhoqo
13. I-pneumatic pressure regulator
14. 8 cm uqhagamshelo lomgca womoya
15. 380V intambo yombane

16. Lungisa igophe lomphezulu ngesikrufu
17. Lungisa igophe lomphezulu ngesikrufu
18. Uhlengahlengiso lwe-Screw kwi-diameter yangaphandle yediski

19. Isibambisi sixhobo 1: Ukujika komphezulu, ukujika kobude
20. IsiXhobo sesixhobo 2: Ukujika kwangaphakathi, ukujikajika
21. IsiXhobo sesixhobo 3: Ukujika kwangaphandle, ukujikajika

22. I-headstock stop switch ilawula i-lathe spindle. Ukuyicinezela phezulu kuvumela ukujikeleza okuqhelekileyo, ngelixa ukuyicinezela kumisa i-spindle.
23. Iswitshi yokumisa i-mold run: Ukuyicinezela ibuyisela i-lathe kwindawo yayo yokuqala emva kokuba ukujika komphezulu kugqityiwe. Ukuyicinezela kumisa i-lathe ekupheleni kwedayamitha yangaphandle yelathi. Ukuyicofa uyibuyisele kwindawo yokuqala kufuna ukuba kumiswe unxunguphalo, njengoko kubonisiwe kuMfanekiso 4.
24. Iswitshi yokumisa i-longitudinal: Ukuyicinezela kuvumela ukujika kwedayamitha yangaphakathi nangaphandle ukuba iqhube. Ukuyicinezela kumisa i-diameter yangaphakathi nangaphandle ekujikeni. Ukuyicofa uyibuyisele kwindawo yokuqala kufuna ukuba kumiswe unxunguphalo, njengoko kubonisiwe kuMfanekiso 4.
25. Ukucofa iMizobo ye-23 kunye ne-24 ivumela ukujika okuqhelekileyo kunye nokuthe tye. Ukucofa uMzobo wama-25 kuvumela ukujika kwe-longitudinal kwindawo emiselweyo kwaye emva koko uphume ngokuzenzekelayo (ukulungisa iidayamitha zangaphakathi nangaphandle). Ukucofa uMzobo wama-26 kuvumela ukujika okude ukudibanisa indawo yokuqalisa ethe tye (indawo yokuqala yomgangatho we-lathe) kwaye emva koko ubuyele kwindawo yokuqala emva kokufikelela ekupheleni komphezulu we-lathe. Ukucofa isitophu sikaxakeka, njengoko kubonisiwe kuMfanekiso 4, kubuyisela umatshini kwindawo yawo yokuqala.



27. Ukutshintsha kweoli ye-Hydraulic, i-oyile yoxinzelelo lwe-oyile: 25-28.

28. Ivalve yokulawula isantya sokuguqula umphezulu (ubukhulu besixhobo).

29. Ivalve yokulawula isantya (ukulungelelanisa isantya sokungena kwesixhobo).

Iqondo eliphezulu lokuzenzekelayo, ukuqinisekisa ukusebenza kakuhle kwemveliso.

Ngokukodwa yenzelwe inqwelomoya ekhethekileyo, iphucula ukuchaneka komphezulu weplate yokufudumeza.

Ukusebenza ngokulula kunye neemfuno zobugcisa ezincinci kubaqhubi.
