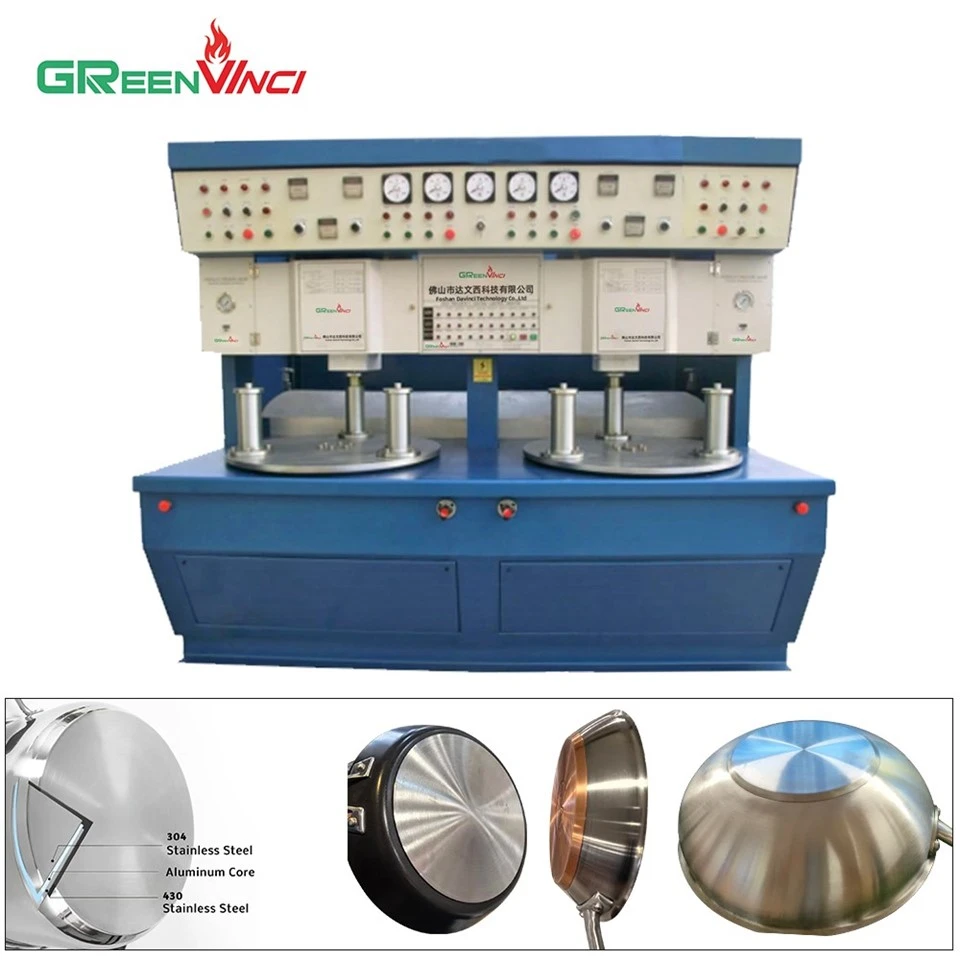

ISandwich Ezantsi Umatshini wokuBonisa

ISandwich Ezantsi Umatshini wokuBonisa

Oku kubambelela kwi-casserole ye-triple ezantsi ngokusebenzisa i-welder press friction kunye ne-furnace yokufudumeza, ebonelela ngeemeko ezingcono zokushisa ngokukhawuleza kunye rhoqo.

Iimpawu eziphambili zobugcisa

Amacandelo Angundoqo eZixhobo

Iyunithi yokungcangcazela:

1. Inkqubo ye-oscillation ephindwe kabini

2. Ukungena komoya wangaphakathi kunye nokulawula ubushushu obuzenzekelayo (ukugcinwa kwi-30-40 degree)

3. Uluhlu lweemveliso: 0-60 kW, 300 kHz

4. Isixhobo sokutshintsha i-oscillator circuit

Iyunithi yoLawulo lwaMandla

1. Ukulawulwa kokunikezelwa kwamandla e-SCR kwenza ulawulo oluchanekileyo lweemeko zokufudumeza

2. Inkqubo yokukhusela i-Digital overcurrent kunye ne-vacuum tubes

3. PLC{1}esekelwe ukusebenza ivumela ukhetho lweyona nkqubo yolawulo ifanelekileyo kumsebenzisi

4. Ukusebenza kwe-PCB ye-CCM ibonelela ngokubonakala kwimeko yomatshini

IYunithi yoLungiso: Unyuso kunye ne-AC-ulungiso lwe-DC olufunekayo kwiyunithi yokujikeleza.

I-voltage ye-1st igalelo: 0-380 ACV

I-2nd igalelo lombane: 0-10,000 ACV

I-voltage yoku-1 yokulungisa: 10,000 ACV

I-2nd yokuhlaziya amandla ombane: 10,000 DCV

Inkqubo yokupholisa amanzi adibeneyo

1. Ukujikeleza kwangaphakathi kwamanzi adiyiweyo ukupholisa

2. Inkqubo iphelisa ukubola kwimibhobho yamanzi okupholisa

Uxinzelelo olusebenzayo: 4-6 kg / cm² Izinga lokuhamba: 120 I / min

3. Umtshintshi wobushushu: Umyinge wokujikeleza kwangaphakathi yi-12 m³/hr, iqondo lokujikeleza ngaphandle yi-30 m³/hr

4. Ithemomitha isetyenziselwa ukulinganisa ubushushu bamanzi, uxinzelelo, kunye nomthamo wokusebenzisa iindlela zokukhusela

UMGaqo wokuSebenzisa onguNdoqo

Okwangoku, oomatshini abadityanisiweyo besangweji esezantsi bebrazing basebenzisa obuchwephesha bulandelayo:{0}}Isantya sokwenziwa kweBrazing

Inkqubo: Umzimba wembiza kunye nomzantsi odityanisiweyo (eneringi yokubrawuza kunye ne-flux ngaphambili{0}}ebekwe phakathi kwazo) zibekwe kwindawo enye. Isixhobo sivelisa amandla aphezulu -okutshintshana ngokuphindaphindiweyo, okuthi, nge-coil yokungenisa, yenze imisinga yeeddy enamandla embizeni ephantsi, ifudumeza ngokukhawuleza imbiza kunye nezantsi edibeneyo (kwimizuzwana embalwa ukuya kumashumi emizuzwana).

Ukufudumeza: Ubushushu buveliswa ngokuthe ngqo kwintsimbi, nto leyo eyenza ukuba isebenze ngokugqithisileyo.

Indalo: Ngokuqhelekileyo yenziwa emoyeni, i-flux (i-solder paste) isetyenziselwa ukukhusela i-oxidation kunye nokukhuthaza ukuhamba kwe-brazing.

Iimpawu: Ukufudumeza okukhawulezayo kunye nokusebenza kakuhle kwemveliso, kodwa kufuna imilo ephezulu yokusebenza kunye nekhoyili ehambelanayo.

Ingcaciso emfutshane yeNkqubo yokuNqanda

Loading -> Workpiece Positioning -> High-Frequency Induction Heating -> Brazing Melts and Fills the Welding Seam -> Cooling and Solidification ->Ukothula

Nceda qaphela:Xa usebenzisa okuisangweji ezantsi kumatshini wokubraya, baqinisekise ukuba abasebenzi baqeqeshwe ngaphambi kokuba bathathe izikhundla zabo ukuze baphephe ukulimala komntu okubangelwa kukungasebenzi kakuhle kwezixhobo.
